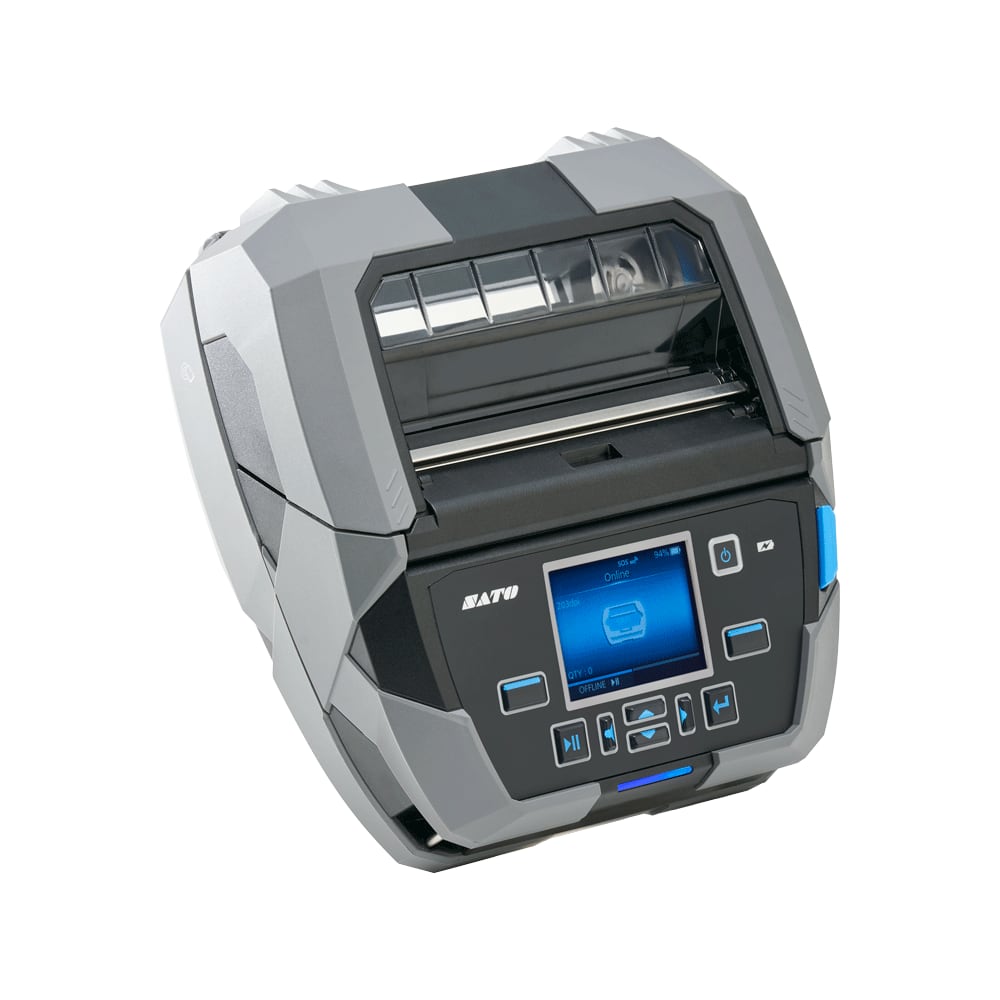

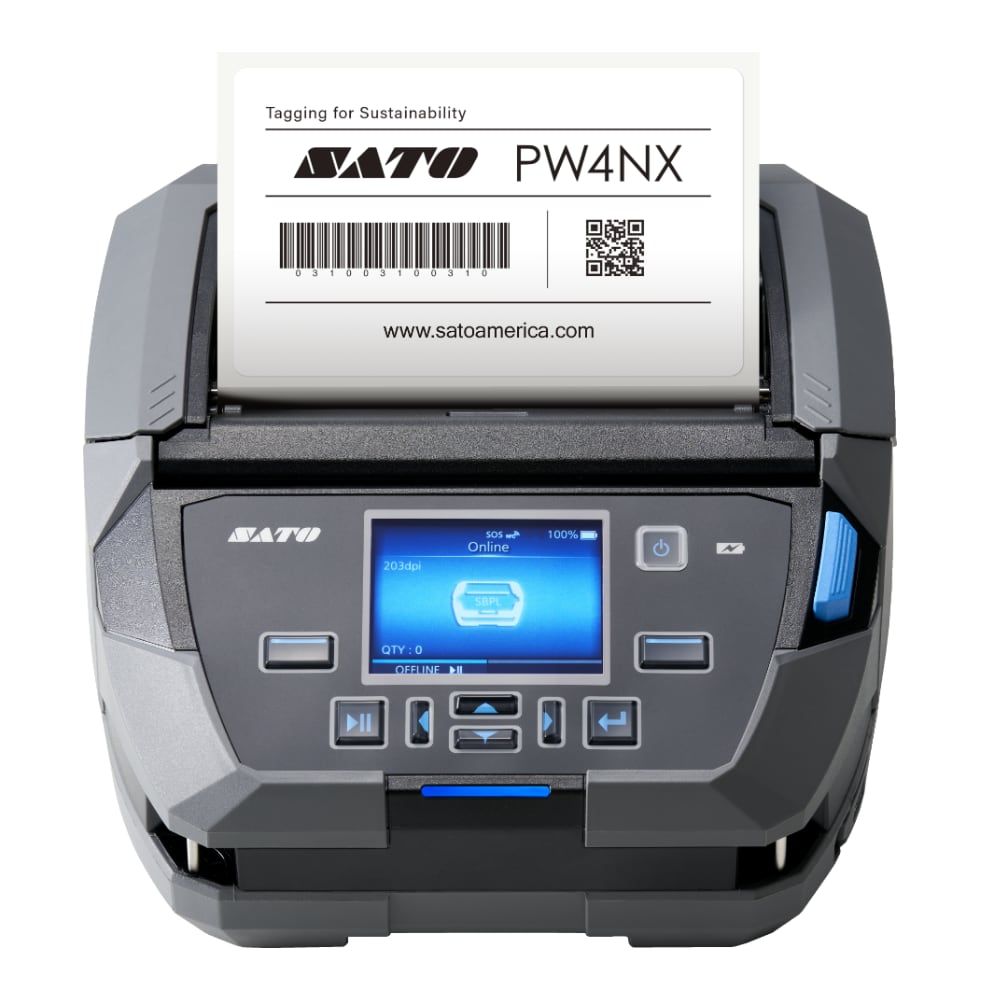

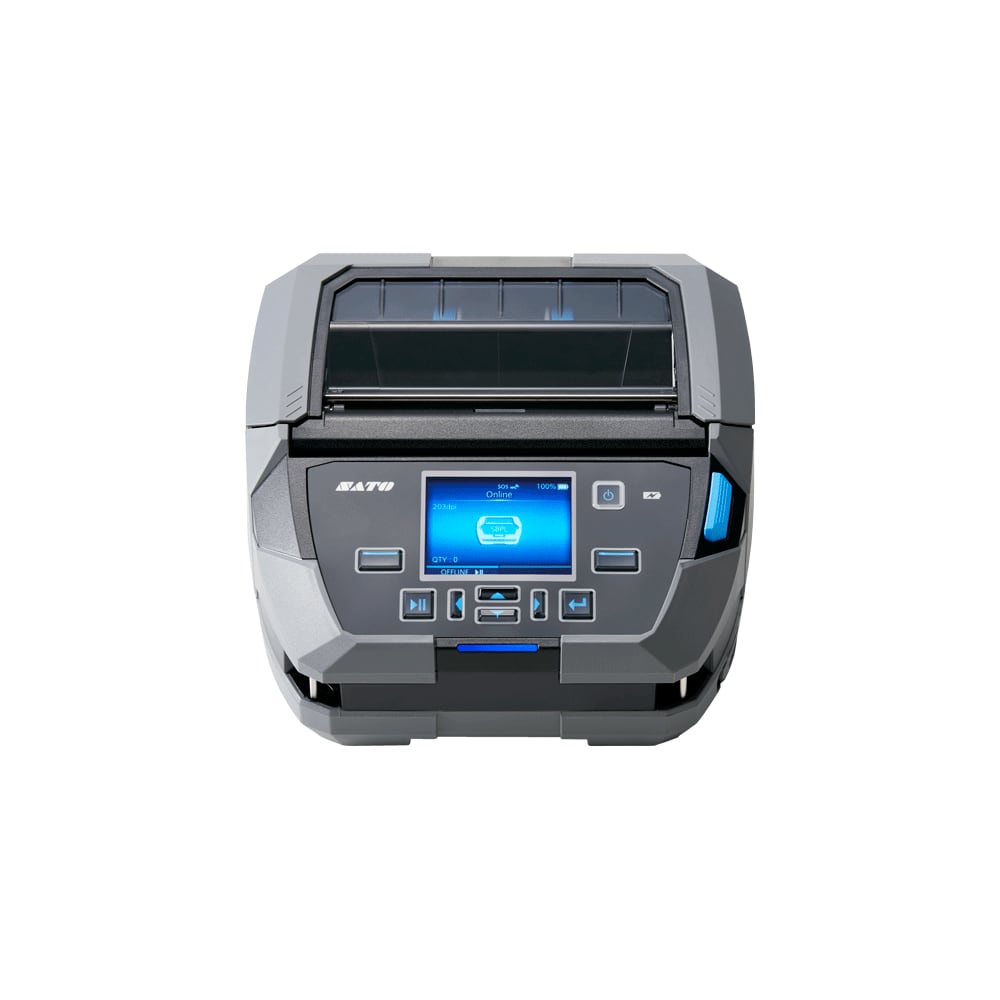

Name: Mobile Label Printer SATO PW4NX DT, 203 dpi
Brand: SATO
SKU: WWPW41001
Price: 1194.00 USD
Availability: InStock

/ Mobile Thermal Printers / PW4NX / WWPW41001

Durable & Reliable

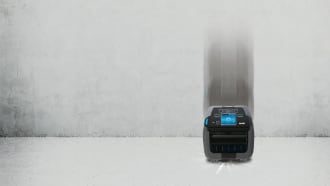

Boasts a robust and rugged design, enduring drops up to 7 feet.
IP54 rating ensures resistance to dust and water.
Delivers over 13 hours of battery life for extended use.
Enables remote management through SOTI and SOS technologies.
Offers an optional DC/DC forklift adapter for enhanced utility.

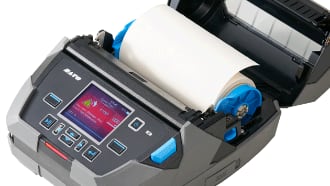

Powerful & Efficient

Achieves industry-leading consistent print speeds of 6 inches per second.
Maintains high-quality printing even at low battery levels.

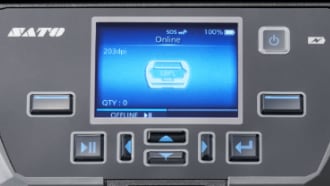

Features a 2.4-inch color display with an 80° viewing angle.
Increases productivity with 43% more label capacity than standard models.

Intelligent & Innovative

Comes with pre-installed emulations for broad compatibility.
Supports standalone printing and direct barcode scanner connections.
Provides connectivity options for Apple iOS, Android, and Windows devices.
Includes self-diagnosis tools for maintenance (head check, paper end, test print cover open, auto power off).

User-friendly

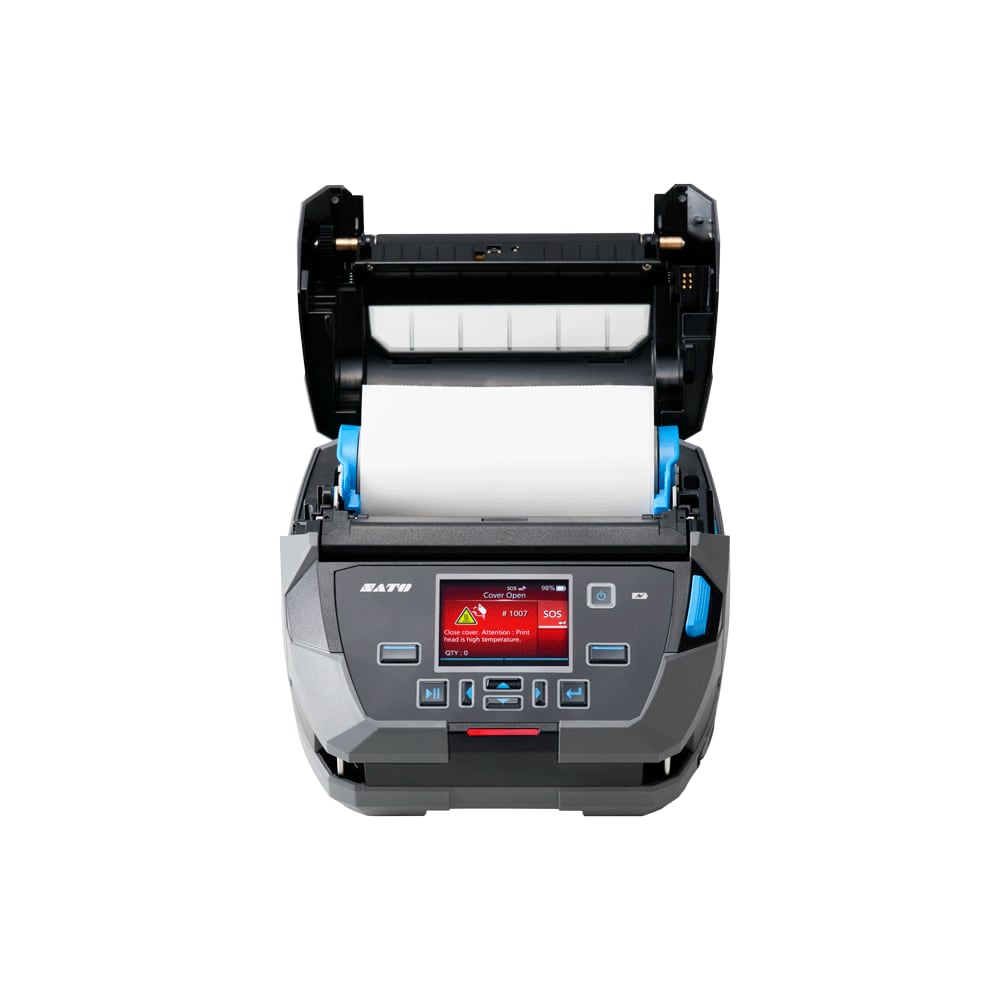

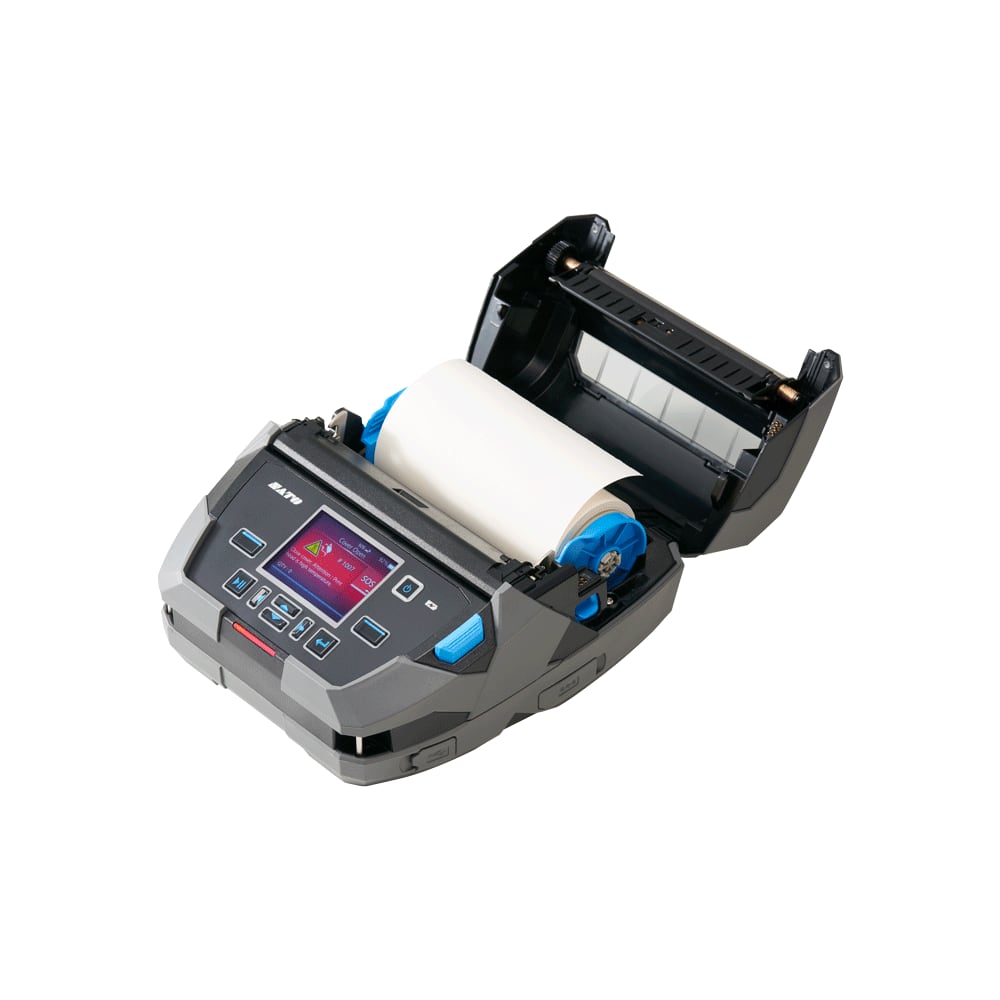

Simplifies maintenance with easy-to-replace print head and platen roller.
Offers on-screen video tutorials for autonomous training.
Enhances portability and space efficiency with optional accessories.

Method	Direct Thermal
Mode	Continuous, tear-off, cutter, dispense, linerless
Resolution	203 dpi (8 dots/mm)
Speed	2 – 6 ips (51 – 152 mm/sec) Linerless & dispenser: 2 to 4 ips (51 – 101 mm/sec)
Max. print area	Width: 4.09” (104 mm) Length: 39.37” (1000 mm)

Sensor type	Transmissive sensor for gap Reflective sensor for I-mark
Media type	Roll (Continuous, Die-cut, Linerless Labels)
Media size (without liner)	Continuous: Width 1.5 – 4.37” (38 – 111 mm) With liner: 1.61 – 4.49” (41 – 114 mm) Length 0.51 – 12” (13 – 305 mm) With liner: 0.63 –12.13” (16 – 308 mm) Tear-off: Width 1.5 – 4.37” (38 – 111 mm) With liner: 1.61 – 4.49” (41 – 114 mm) Length 0.63 – 12″ (16 – 305 mm) With liner: 0.75 –12.13″ (19 – 308 mm) Dispenser: Width 1.5 – 4.37” (38 – 111 mm) With liner: 1.61 – 4.49” (41 – 114 mm) Length 0.63 – 10″ (16 – 254 mm) With liner: 0.75 – 10.12″ (19 – 257 mm) Linerless: Width 1.5 – 4.49” (38 – 114 mm) Length 0.63 – 10.12″ (16 – 257 mm) Receipt: Width 1.06″ – 2.28″ (27 – 58 mm)
Media thickness	0.0023″ – 0.0075″ (0.058 – 0.1905 mm)
Outer roll diameter	Maximum outer diameter: 2.63″ (67 mm)
Inner roll diameter	0.75″ (19 mm)
SATO genuine consumables	For maximum print quality and optimum use, SATO recommends the use of SATO genuine consumables

Standard

USB 2.0 High Speed type B mini, Bluetooth Ver.5.0 BLE, NFC 802.11a/b/g/n/r/ac Dual band WLAN (2.4 GHz, 5 GHz)

Printer memory	8GB ROM, 1 GB RAM Receive Buffer: 2.95MB
Processor	Dual CPUs with a 1GHz

Large status LCD	Blue/red/green (battery)
Audible alerts	Activated when printer requires attention
Self diagnosis	Thermal head check, paper end detection, test print, cover open detection, auto power off
Display panel	2.4-inch color display (80° viewing angle)
Remote maintenance	SNMP Ver. 3, web interfaces, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect
Emulation	SBPL®, SZPL, SCPL, SIPL
SATO All-In-One Tool (AIOT)	Link to supported printer(s) via auto discovery or manual entry; easily send print jobs using mobile devices; Configure control any SATO printer regardless of its location in the world

Internal fonts

Standard bitmap: U, S, M, WB, WL, XU, XS, XM, XB, XL, OCR-A,
Height: 3.35″ (85 mm)
OCR-B
Scalable: SATO CG Sleek, SATO CG Stream, 13 SATO Fonts, Multi-National Language Support (47 Languages/Unicode), Single and Double Byte Fonts (Korean, Chinese, Japanese)
Encoding: Major Latin and Pan-European Code Pages (WGL4), GB18030 (Simplified), KSX1001 (Korean), BIG5 (Traditional), JIS, SHIFTJIS, UTF-8 and UTF-16BE

Barcodes

Linear: Code 39, Code 93, Code 128, CODABAR (NW7), EAN(JAN)8/13, GS1-Databar™, GS1-128 (UCC/EAN128), Interleaved 2/5, Industrial 2/5, Matrix 2/5, MSI, Bookland, Postnet™, UPC-A/E
2D symbologies: PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, Aztec, QR Code, Micro QR Code and Composite Symbologies

Internal fonts

Barcodes

Electrical requirements	AC100V~AC240V, 50/60 Hz (AC Adapter); Output: DC19V +/- 5% 2.37A
Standards & agency approvals	CE Marking, IEC60950-1, EN60950-1, EN55022, EN55032, EN55024, EN61000-3-2/3-3, EN 301 489-1/-3/-17, EN 300 330-2/-1, RE, MET/cMET, FCC15B/C/E, CCC, SRRC, IDA, SIRIM, NTC, SDPPI, RCM
Environment	Operating: 5 to 122°F (-15 to 50 ºC), 10-90 % RH (without condensation) Storage: 13 to 140°F (-25 to 60 ºC), 10-90 % RH (without condensation) Battery: 14.4V (2550 mAh)

Dimensions	Width: 7.09″ (180 mm) Depth: 7.68” 04″ (195 mm) Height: 2.69″ (68.2 mm)
Weight	3.17 lbs. (1,440g) excluding paper, including battery
Durability	Withstands Multiple drops at 7ft (2.13 m). Rated IP54

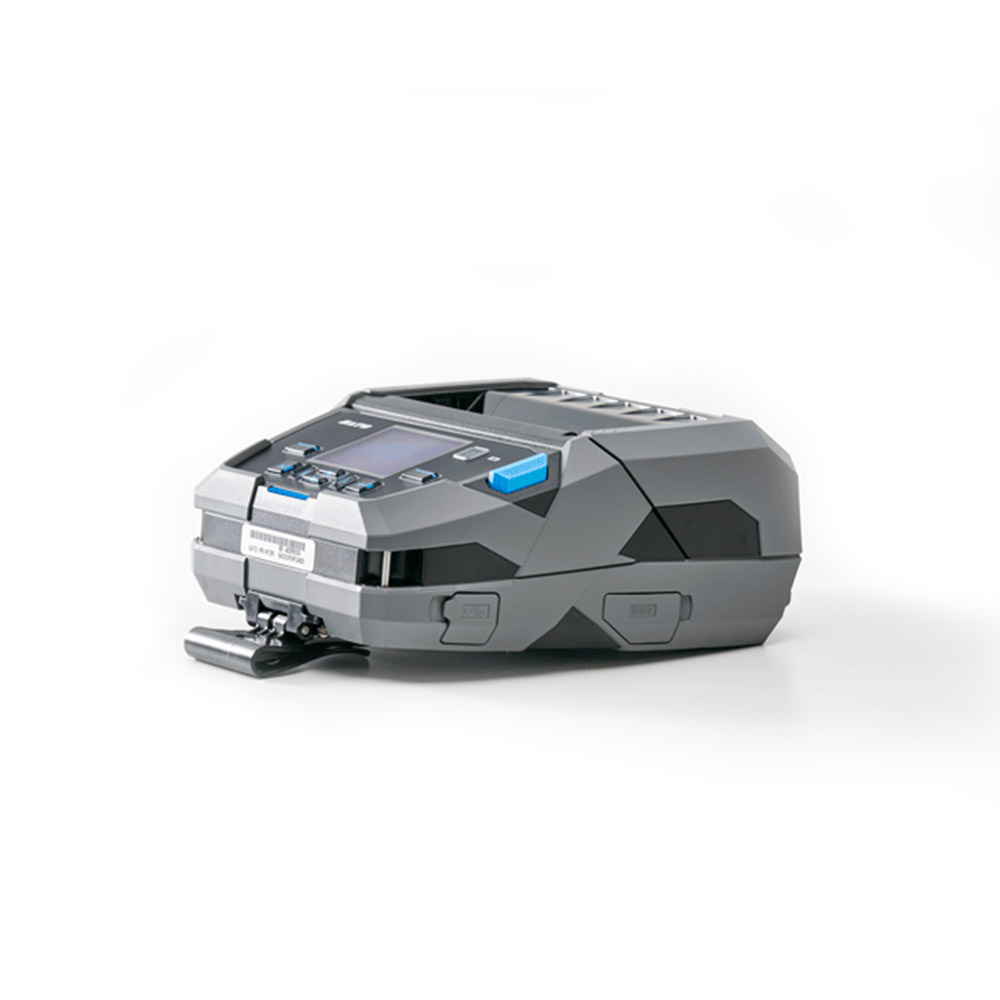

Included	Lithium-ion battery, belt clip

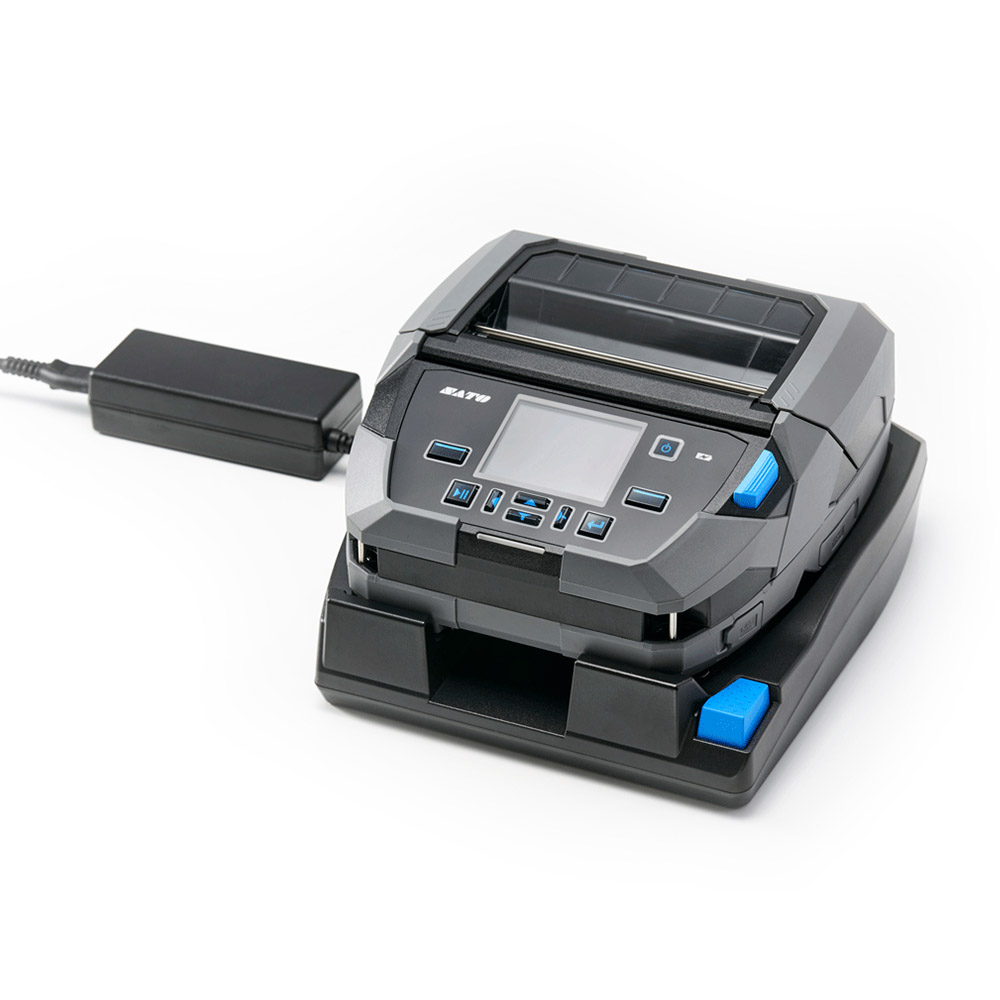

Optional	1-Bay / 4-Bay Charging Cradle, 1-CH Battery Charger, Lithium-ion Battery, AC Adapter, DC Adapter, Battery Eliminator with AC Adapter, Cigarette Adapter, Hand Strap, Belt Clip, Shoulder Strap, Carrying Case, Printer Stand, Mounting Bracket, Cold Case and Linerless Kit

Applications

Inventory management
Cross-docking
Receiving goods inspection
Shipping inspection
Picking and put-away

Raw material management
Quality checks
Packing and assembly
Item processing
Forklift printing

Downloads

PW4NX product datasheet
PW4NX quick guide
PW4NX operator manual
PW4NX programming reference
