/ Mobile Thermal Printers / PW2NX / WWPW2500G

Request a product consultation

SATO PART #: WWPW2500G

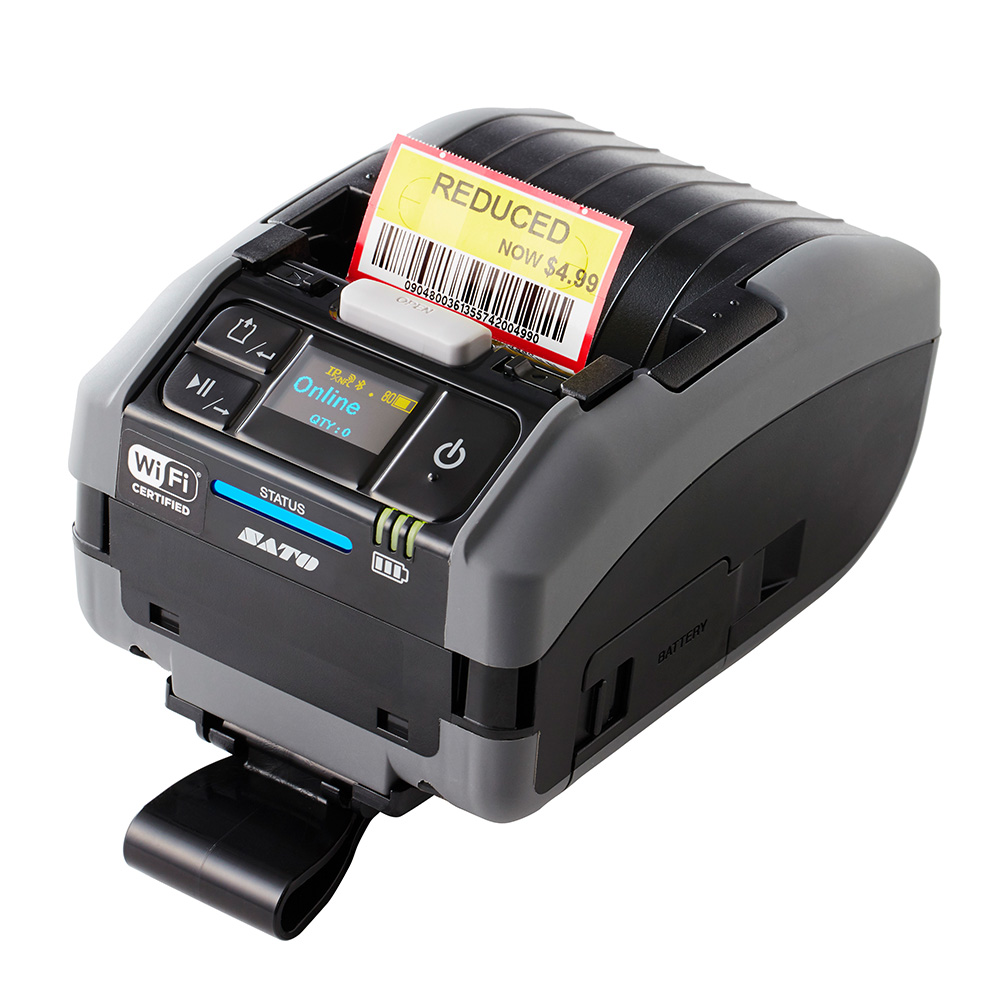

Mobile Label Printer SATO PW2NX DT, 203 dpi

The PW2NX is a robust, compact 2-inch mobile label printer that delivers outstanding print speeds and high-quality results. It includes multiple connectivity options such as Bluetooth, USB, and NFC. This model features a shock-resistant polycarbonate body with rubberized edges, a built-in dispenser, and is enhanced with bright status LEDs and a color display.

Includes: Bluetooth, Dispenser, smart battery, and belt clip. Requires a charging option; power adapter not included.

Print resolution: 203 dpi
Print method: Direct Thermal
Communication interface: Mini USB 2.0, Bluetooth, NFC
Max print speed: 6 ips (Linerless & Dispenser - 4 ips)
Max print width: 2.16"
Max print length: 39.37"
Printer memory: 2 GB ROM, 512 MB RAM

$1,065.00$1,420.00

Save $355.00

FREE shipping

(estimated 4-7 business days; faster options at checkout)

Added value

Best value/price ratio in the market among competitive products
FREE shipping and low expedited shipping rates

Customize your printer setup

1. Choose a charging option

The printer does not include a power adapter. Please select one of the following charging options when placing your order:

Direct AC-DC power to printer On backorder $66.75

View details

1-Channel battery charger $181.77

View details

1-Bay cradle $170.56

View details

4-Bay cradle $482.16

View details

2. Select accessories for portability and efficiency

Enhance your printer's functionality and ease of use with our range of accessories:

Shoulder strap $36.00

View details

Soft carrying case $127.05

View details

Replacement battery $107.25

View details

Compact & Durable

Weighs just 0.97 lbs. with battery, making it easy to carry.
Compact dimensions (3.7″ width, 5.0″ depth, 2.7″ height) enhance portability.
Rugged shell structure withstands drops from 8.2 ft.
Sealed keypad and display prevent water and dust ingress, simplifying cleaning.

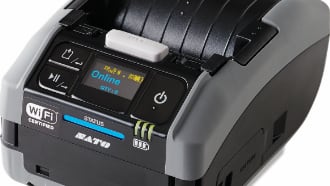

Powerful & Efficient

Delivers consistent, industry-leading print speeds of 6 inches per second.
Full 2.16″ print width allows for 14% more text area than comparable models.
Large roll capacity holds 22% more labels per roll, reducing downtime.
Features a built-in dispenser, bright status LEDs, and a color display.
Provides over 13 hours of battery life for extended operation.

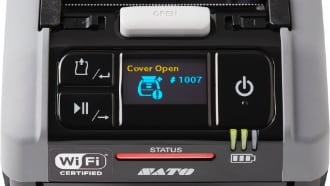

Intelligent & Innovative

Includes pre-installed emulations to ensure broad compatibility.
Supports standalone operation and direct connections to barcode scanners.
Web-based printing with SmaPri technology for seamless integration from web pages.

User-friendly

Designed for easy maintenance with user-replaceable print head and platen roller.
Enhances portability and efficiency with a range of optional accessories.

Method	Direct Thermal
Mode	Continuous, tear-off, cutter, dispense, linerless
Resolution	203 dpi (8 dots/mm)
Speed	3, 4, 5, 6ips (76, 101, 127, 152 mm/sec) Linerless & dispenser: Up to 4ips (101 mm/sec)
Max. print area	Width: 2.16” ( 55 mm) Length: 39.37” (1000 mm)

Sensor type	Transmissive sensor for gap Reflective sensor for I-mark
Media type	Roll (Die-cut, Continuous, Linerless Labels)
Media size (without liner)	Continuous: Width 1.0 – 2.17” (25.4 – 55 mm) With liner: 1.12 – 2.28” (28.4 – 58 mm) Length 0.51 – 6.30” (13 – 160 mm) With liner: 0.63 – 6.42” (16 – 163 mm) Tear-off: Width 1.0 – 2.17” (25.4 – 55 mm) With liner: 1.12 – 2.28” (28.4 – 58 mm) Length 0.51 – 6.30” (13 – 160 mm) With liner: 0.62 – 6.42” (16 – 163 mm) Dispenser: Width 1.0 – 2.17” (25.4 – 55 mm) With liner: 1.11 – 2.28” (28.4 – 58 mm) Length 0.62 – 6.30” (16 – 160 mm) With liner: 0.74 – 6.42” (19 – 163 mm) Linerless: Width 1.97- 2.28” (50 – 58 mm) Length 0.63- 4.72” (16 – 120 mm) Receipt: Width 1.06″ – 2.28″ (27-58 mm)
Media thickness	0.0025″ – 0.0074″ (0.064 – 0.19 mm)
Outer roll diameter	Maximum outer diameter: 2.36″ (60 mm)
Inner roll diameter	0.75″ (19 mm)
SATO genuine consumables	For maximum print quality and optimum use, SATO recommends the use of SATO genuine consumables

Standard	USB 2.0 (Type B Mini), Bluetooth® Ver. 3.0 (iOS Support), NFC
Optional Wireless LAN Kit	Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11a/b/g/n, Dual Band (2.4GHz, 5GHz)

Printer memory	2GB Flash, 512MB RAM Receive Buffer: 2.95MB
Processor	32-Bit RISC CPU

Large status LCD	Blue/red/red
Audible alerts	Activated when printer requires attention
Self diagnosis	Thermal head check, paper end detection, test print, cover open detection, auto power off
Display panel	Organic EL Display (128 x 64 dots)
Remote maintenance	SNMP Ver. 3, HTTP (Web Interface)
Emulation	SBPL® (Standard), SPOS®, SCPCL®, SZPL®, SDPL®, SIPL®, STPCL®
SATO All-In-One Tool (AIOT)	Link to supported printer(s) via auto discovery or manual entry; easily send print jobs using mobile devices; Configure control any SATO printer regardless of its location in the world

Internal fonts

Standard bitmap & scalable fonts: 10 Bitmap SATO Fonts, 13 Scalable SATO Fonts, SATO CG Sleek, SATO CG Stream, Multi-National Language Support (47 Languages/Unicode), Single and Double Byte Fonts (Korean, Chinese, Japanese)
Encoding: Major Latin and Pan-European Code Pages (WGL4), GB18030 (Simplified), KSX1001 (Korean), BIG5 (Traditional), JIS, SHIFTJIS, UTF-8 and UTF-16BE

Barcodes

Linear: Code 39, Code 93, Code 128, CODABAR (NW7), EAN(JAN)8/13, GS1-Databar™, GS1- 128 (UCC/EAN128), Interleaved 2/5, Industrial 2/5, Matrix 2/5, MSI, Bookland, Postnet™, UPC-A/E
2D symbologies: PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, Aztec, QR Code, Micro QR Code and Composite Symbologies

Electrical requirements	AC100V~AC240V, 50/60 Hz (AC Adapter); Output: DC10V + 1.0V / -0.0V 1.5A
Standards & agency approvals	CE Marking, IEC60950-1, EN60950-1, EN55022, EN55032, EN55024, EN61000-3-2/3-3, EN 301 489-1/-3/-17, EN 300 330-2/-1, RE, MET/cMET, FCC15B/C/E, CCC, SRRC, IDA, SIRIM, NTC, SDPPI, RCM
Environment	Operating: 23 to 104°F (-5 to 40 ºC), 30-80 % RH (without condensation) Storage: 13 to 140°F (-25 to 60 ºC), 10-90 % RH (without condensation) Battery: 7.2V (1950 mAh)

Dimensions	Width: 3.74″ (95 mm) Depth: 5.04″ (128 mm) Height: 2.69″ (68.2 mm)
Weight	5.04″ (128 mm) excluding paper, including battery weight of 0.23 lbs. (105g)
Durability	Withstands Multiple drops at 7ft (2.13 m). Rated IP54

Included	Lithium-ion battery, belt clip
Optional	1-Bay / 4-Bay Charging Cradle, 1-CH Battery Charger, Lithium-ion Battery, AC Adapter, DC Adapter, Battery Eliminator with AC Adapter, Cigarette Adapter, Hand Strap, Belt Clip, Shoulder Strap, Carrying Case, Printer Stand, Mounting Bracket, Cold Case and Linerless Kit.

Applications

Carrier route flats
Cross docking
Delivery proofs
Inventory management
Inventory tracking
Item level pricing
Item processing
Laboratory
Metering receipts

Patient records
Picking & put-away
Repricing/markdowns
Returns and receipts
Shelf edge labeling
Signature confirmation labels
Sortation & location
Specimen collection
Temporary hold labels

Downloads

PW2NX product datasheet
PW2NX quick guide
PW2NX operator manual
PW2NX programming reference
