Installing a dispenser in the CL6NX Plus printer

Learn how to install a dispenser unit in your CL6NX Plus printer with this step-by-step guide.

Caution:

• Before the installation, be sure to power off the product and disconnect the power cord.

Step 1: Open the top cover and print head

1. Open the top cover (1).
2. Open the print head (2).

Caution: Open the top cover fully to prevent accidental drop of the cover.

Step 2: Remove the front covers

1. Remove two screws (3).
2. Slide in the arrow direction to remove the front covers (4) and (5).

Step 3: Remove the left housing cover

1. Remove the screw (6).
2. Slide and lift to remove the left housing cover (7).

Step 4: Remove the media holder plate

1. Remove two screws (8) to remove the cover (9).
2. Remove three screws (10) to remove the media holder plate (11).

Step 5: Cut the joints on the media holder plate

1. Using a nipper, cut three joints to remove the portion in the circle on the media holder plate (11).
2. Make sure there are no burrs left on the cut surface.

Step 6: Attach the gearbox of the liner rewinder

1. Route the motor cable (14) around the motor as shown.
2. Attach the gearbox (12) using four screws (13). Make sure the motor cable is not pinched.
3. Tie the motor cable (14) using a cable tie (15) as shown.
4. Insert the motor cable (14) into the slot at the bottom of the printer center frame.

Step 7: Reattach the media holder plate

1. Slide to attach the media holder plate (11) back to its position.
2. Tighten three screws (10) to secure it.

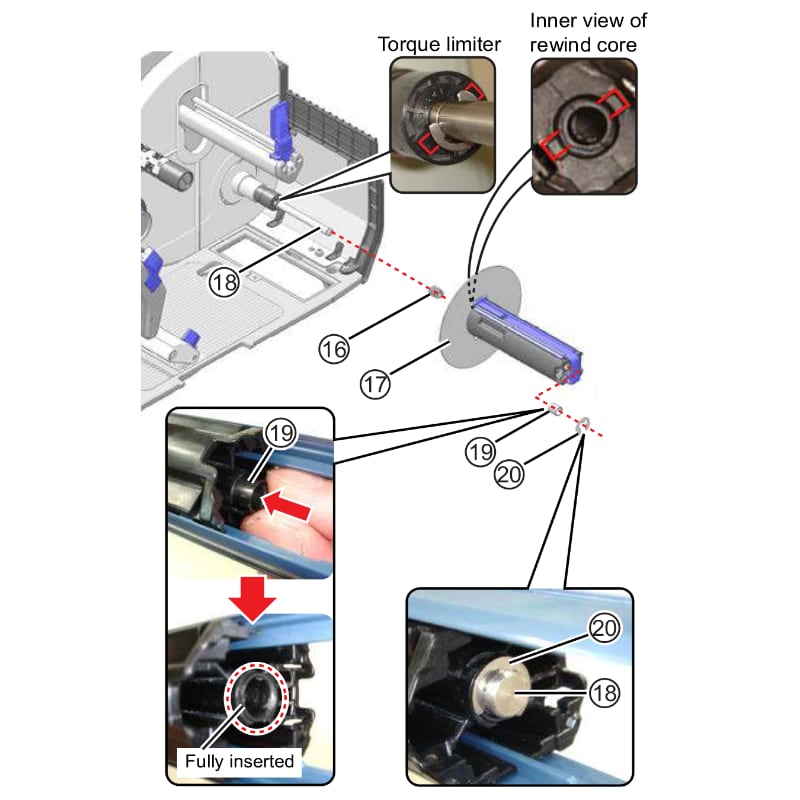

Step 8: Assemble the rewind core unit

1. Place the spring (16) and rewind core unit (17) through the rewind shaft (18).
2. Rotate the rewind core unit (17) such that the groove on the inner core nests on the protruding tab of the torque limiter.
3. Insert the oiles bearing (19) into the center hole of the rewind core unit (17).

Step 9: Attach the E-ring

1. Using pliers, attach the E-ring (20) to the groove of the rewind shaft (18).

Step 10: Attach the EXT PCB and motor cover

1. Attach the EXT PCB (21) and tighten four screws (22).
2. Attach the motor cover (23) and tighten two screws (24).

Step 11: Connect the cables

1. Connect the DIS power cable (25) to the EXT PCB (21) and power supply unit (27).
2. Connect the motor cable (14) from the gearbox (12) to the EXT PCB (21).
3. Connect the DIS signal cable (26) to the EXT PCB (21) and main (CONT) PCB (28).

Step 12: Install the relay-PCB

• Install the relay-PCB (29) to the printer.
• Tighten two screws (30) to secure it.

Caution: To avoid electrical damage, ensure that the orientation of the relay-PCB is placed with the highlighted connector at the bottom.

Step 13: Connect the option and dispenser cables

1. Connect the option cable (31) of the printer to the relay-PCB (29).
2. Connect the dispenser cable (32) of the dispenser unit to the relay-PCB (29).

Step 14: Attach the front cover

• Attach the front cover (5) to the printer.

Step 15: Attach the dispenser unit

1. Attach the dispenser unit (33).
2. Tighten four screws (34) to secure it.

Note:
Before attaching the dispenser unit, ensure that the NIP springs are in the correct position.
If the NIP spring is in the wrong position, push the NIP spring in the arrow direction using long nose pliers.

Step 16: Attach the dispenser bar

1. Open the dispenser unit.
2. Attach the dispenser bar (35).
3. Align the center line on the dispenser bar (35) to the mark on the engine frame.
4. Tighten the screw (36) to secure the dispenser bar.

Step 17: Attach the front cover of the dispenser

1. Attach the front cover (37) of the dispenser.
2. Tighten two screws (3).
3. Attach the back of the front cover to the protruded tab as shown.

Step 18: Secure the dispenser unit

1. Tighten a screw (38) from the rear side of the dispenser unit.
2. Close the dispenser unit.

Step 19: Reattach the left housing cover

• Attach the left housing cover (7).
• Tighten the screw (6).

Checking and adjusting after the installation

Test print checking

1. After loading the media and ribbon, close the print head and top cover. Then power on the product.

2. Perform a test print and check the following items:
   • Check the dispense operation to make sure that there is no slack on the liner.
   • Check the dispenser sensor to ensure that it can sense the label.
     • Before the label is removed from the dispenser bar, the “waiting for media removal” status icon is shown.
     • When the label is removed, the product continues to print the next test print and stops for label removal.

   • Check the media stop position to ensure accuracy.
     • The regular position is to let the label stay about 2.0 mm (0.08″) on the liner.
     • If the stop position is incorrect, adjust the offset value on the test print screen.
     • Refer to Section 4.6 Adjusting the Media Stop/Cut Position for detailed adjustment instructions.

   • Check the liner rewinding to confirm that the liner is rewound correctly (for liner rewinder models).
   • Check for media meandering to verify that the media feeds straight without slanting.
     • If the feeding path of the label or liner is slanted, adjust the slope angle of the dispenser bar.
     • Loosen the screw, adjust the dispenser bar, and then tighten the screw to secure the new position.
